Product Quality Guarantee and Disclaimer
Since its establishment, our company has maintained a rigorous and responsible attitude in providing each client with comprehensive services from consultation to after-sales support. To facilitate your understanding of our company and uphold our commitment to product quality responsibility, we hereby publish the printed product quality guarantee and disclaimer as follows:
After-Sales Service Timeliness
Please inspect the goods promptly upon receipt for any quality issues and submit an after-sales request within one month. After-sales requests submitted beyond one month will not be processed. Thank you for your understanding!
Color Deviation Issues
- Printing uses CMYK four-color offset printing. Please do not use RGB mode or spot colors when filling colors. Do not require printing colors based on screen or printed proof colors. When designing, please refer to color chart values for color fills. Otherwise, after-sales service will not be provided for resulting color deviations.
- We strictly adhere to the CMYK color values in the file for printing. However, for the same printed product with different order numbers or produced in different batches, a color deviation of around 10% is normal due to variations in temperature, humidity, and manual operations. Particularly for dark blue, dark green, dark purple, maroon, brown, coffee, and gray — these are considered risky colors. A color deviation of around 5% can be visually noticeable, especially for large solid areas and flat tints. During printing, issues like ink streaks, uneven printing, or color variations within a batch may occur and are unavoidable. After-sales service will not be provided for issues within this range.
Cutting Issues
There is a cutting tolerance of 2 millimeters. Design essential content at least 3 millimeters away from the finished edge (excluding bleed). Especially for designs with colored borders on all sides, uneven cutting may occur and be visually noticeable. Please inform the client in advance. After-sales service will not be provided for issues within this range.
Four-Color Black Text and QR Code Issues
Please design black text and QR codes as solid black (K100, CMY 0). For large-area black, use the color value (K100, C30, M0, Y0). Do not design with four-color black, as it may cause ink smearing and misregistration issues. After-sales service will not be provided if these instructions are not followed.
Filename and Remarks Issues
Order production is based on the selected printing specifications. Filenames and remark information are not used as references for production. Please ensure the correct paper and processes are selected when placing the order. Otherwise, after-sales service will not be provided for resulting losses.
Minor Scratch Issues
PVC cards require a lamination process to achieve glossy, matte, or satin finishes. The post-production involves multiple steps, and friction during transportation can cause minor scratches. Glossy materials do not conceal imperfections; minor scratches on glossy cards are unavoidable, and after-sales service will not be provided. If the client has high requirements, we recommend using matte or satin materials.
Missing Codes and Number Gaps
PVC card production involves many processes. Numbering has a 0.5% wastage rate, and machine numbering may occasionally skip numbers. Therefore, we cannot guarantee that numbers will be completely sequential and continuous. For missing codes, after-sales service will not be provided.
Material Variation Issues
PVC is a plastic product. Material thickness may vary by about 0.02mm between different batches, and color may slightly differ. These are normal phenomena; please inform the client in advance. When thickness exceeds 0.5mm, cards require lamination to be finished. Influenced by factors such as temperature, humidity, surface material, and core material thickness tolerance, cards may have slight unevenness. This is unavoidable, and after-sales service will not be provided. Due to the special properties of the material, the finished product is not guaranteed to be suitable for secondary overprinting. After-sales service will not be provided for such issues.
Regarding Sunlight Resistance
PVC specialty cards are printed using CMYK four-color offset printing, resulting in a relatively thin ink layer. Ultraviolet (UV) rays or rainwater can damage ink stability. Fading will occur faster under strong UV light or frequent rain. If the client requires color sunfastness, we recommend selecting sunlight-resistant ink when placing the order. The sunlight-resistant ink we use has a grade 6 sunfastness rating, and its effectiveness generally lasts 1-3 months.
Regarding Environmental Testing
The following materials require core material lamination and currently do not support environmental testing: 0.32mm matte standard material, 0.76mm glossy new material, 0.76mm matte new material, 0.76mm satin new material, 1mm glossy new material, 1mm matte new material, 1mm satin new material. If the client has high requirements and needs to meet environmental testing standards, please consult our staff separately for calculation and arrangement.
Regarding Ink Smearing Issues
PVC production involves many processes, and there is a certain probability of slight surface dust or ink smearing, especially with glossy materials. For high-demand dark or solid-color cards, achieving zero defects is currently not possible. We recommend informing your client of this situation in advance and合理安排 material and order planning accordingly.
NFC Chip Card
Product Effect
PRODUCT EFFECT
Finished Card Size
Design Draft Size
Introduction to NFC
Near Field Communication
- 1It is a short-distance high-frequency wireless communication technology.
- 2Also known as near field communication, short-range wireless communication, or near field communication.
- 3Allows non-contact, point-to-point data transmission between electronic devices to exchange data.
"Just touch it" to exchange data between different electronic products. - 4As long as the product and the IC card support NFC, data can be read or written.
- 5Evolved from radio frequency identification technology (RFID).
Operating Instructions
Operating Instructions
First type: completely blank card.
For Android phones, download the APP: NFC Tag Assistant; for Apple phones, you can download the APP: NFC tools. Turn on Bluetooth and NFC functions on the phone, touch the card near the camera on the back of the phone, and start setting the information to be written. Specific operation tutorials can also be searched online, such as Baidu, Douyin, Xiaohongshu, etc.
Second type: self-developed program by Shengtai.
- Please ensure that the Bluetooth NFC function of the phone is turned on
- Touch the card near the camera on the back of the phone, and the phone display interface is as follows
- Select the application scenario, there are 3 functions in total (only one can be set in a single setting). For example: select the electronic business card. Start setting the business card information. (To ensure the security of the card information, you will be prompted to log in with a text message verification for the first setting)
- After editing the corresponding information, press save. Touch again, and the display interface is as shown in the following figure. After identifying the electronic business card, you can save the mobile phone number in the business card to the personal address book in time, or you can directly click the WeChat button to add WeChat. (Note: If you need to modify later, be sure to save the final prompt link.)

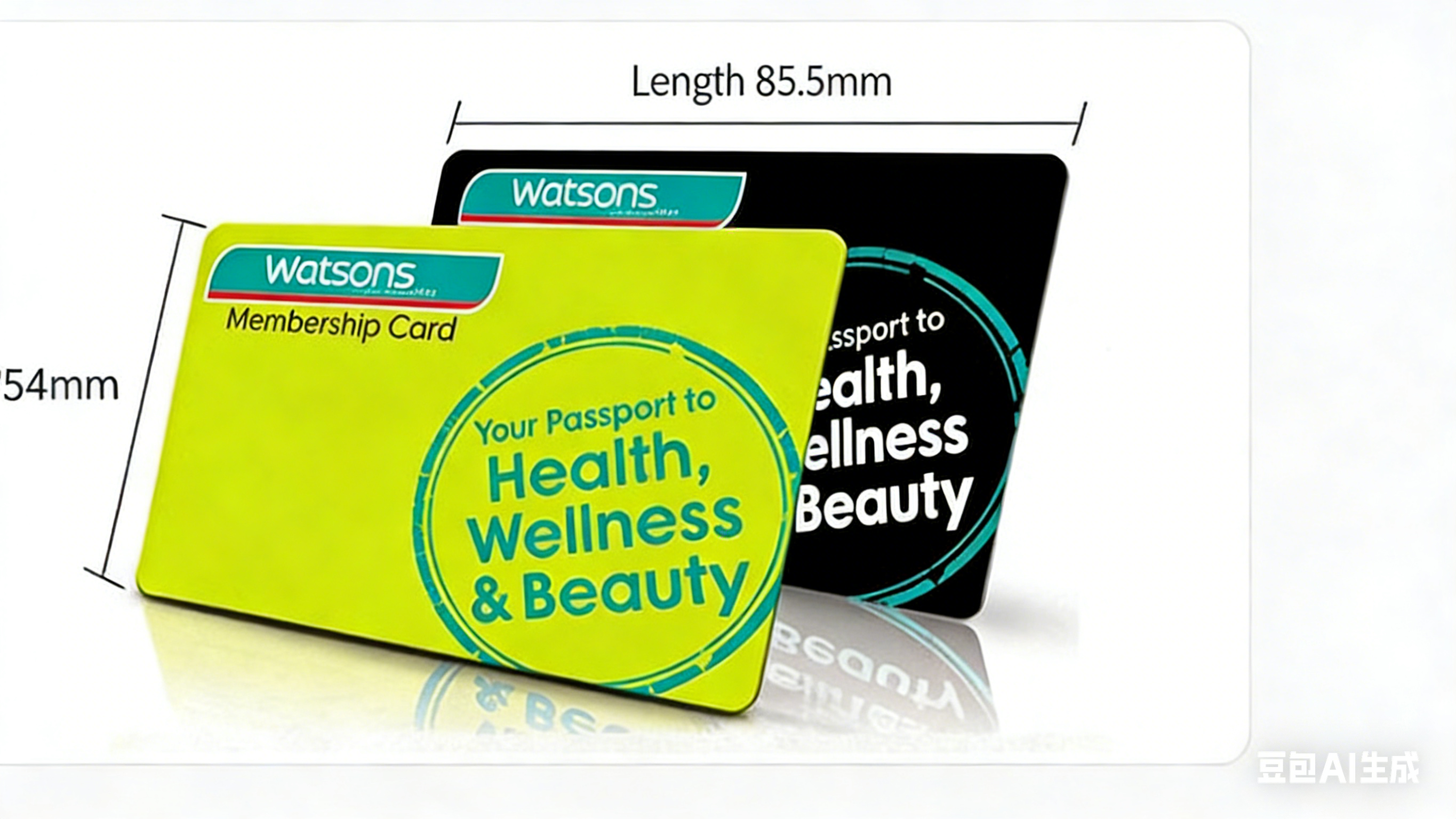

Finished size: 85.5×54MM rounded corner | Design size: 88.5×57MM right angle
Effective content is 4MM away from the edge (1.5MM outwards on each of the top, bottom, left and right)
Product Material
PRODUCT MATERIAL

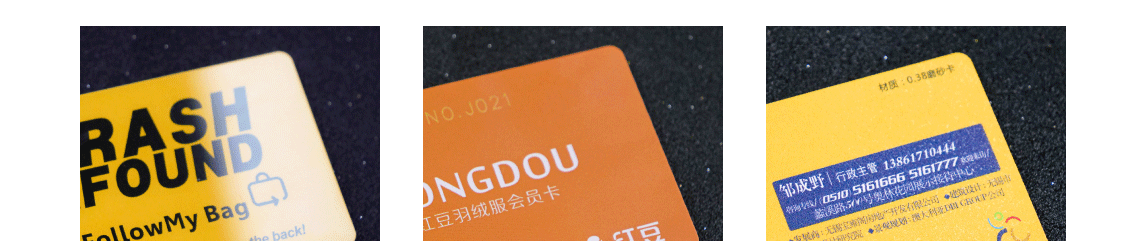

Glossy Card
Smooth surface, bright and rich colors, affordable, and widely used.
[Thickness] 0.84mm
Matte Card
Smooth and delicate, non-reflective, scratch-resistant.
[Thickness] 0.84mm
Frosted Card
Frosted texture, grainy to the touch, scratch-resistant.
[Thickness] 0.84mm
All the above materials are self-laminated, made of new materials, and there will be slight errors in the thickness after lamination of the physical layer, please be aware.
NFC Chip Card
The card number of the chip is non-erasable, and an NFC reading and writing device is required
| Chip Model | NTAG 216 |
| Storage Memory | 888B |
| Data Storage | 10 years |
| Specification | 85.5×54mm |
| Operating Frequency | 13.56MHZ |
| Packaging Process | PVC lamination |
| Reading and Writing Distance | The reading and writing distance is generally between 1-10cm |
| Write Operation Tolerance | 100000 cycles |
Common Scenarios
Electronic business card, share link, share graphic and text
Note: Mainly used in scenarios such as electronic business cards and intelligent marketing.
Product Process
PRODUCT PROCESS

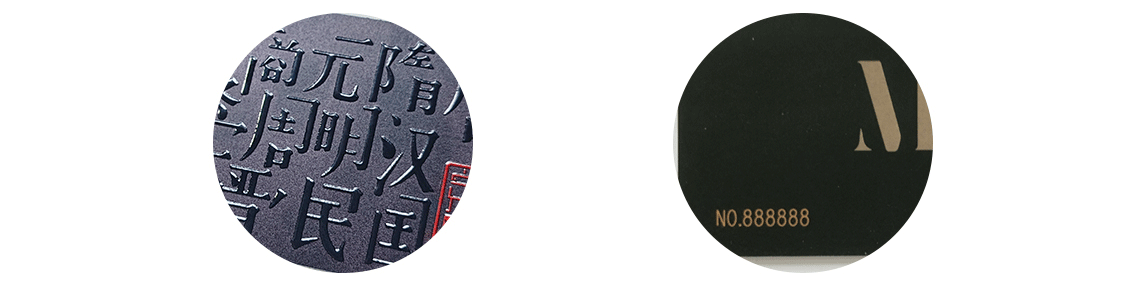

Embossing
The file must be designed in vector, and the text or pattern that needs to be embossed and UV must be clearly marked in the file, and the non-embossed UV part will be normally printed flat.
Number
For the size of 85.5×54mm, code printing and laser code can be made. Code printing is to directly print the finished product according to the font, font size and color designed by the customer.
Precautions
PRECAUTIONS
Operation Instructions:
Turn on the NFC function of the mobile phone, and gently touch the NFC card from the approximate rear camera position of the mobile phone to start the NFC experience journey.
